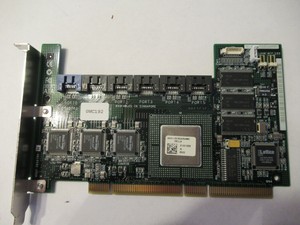

The 2610SA is an OEM part manufactured by Adaptec on behalf of Dell and HP (and probably others) though the Dell units I've come into contact with are always fully Adaptec branded without a Dell sticker to be seen. Its a 6 port version of the Adaptec retail product 2410SA/2810SA/21610SA, uses the same drivers and is managed with the same software.

Although the 2610SA is a PCI-X card (64 bit PCI) it will work just fine on modern motherboards that have 32 bit PCI slots. Remember though that if you use it in a 32 bit PCI system:

• Be extremely careful that the unused and exposed edge connector pins don't touch anything that rises up out of your motherboard. Be careful of heatsinks, SATA ports, metal cases of capacitors and whatnot.
• It almost goes without saying that using a 64 bit card in a 32 bit slot will effectively halve (or less) the potential bandwidth of the card, throttling its throughput significantly. This is already a low end RAID card, so be prepared, in 32 bit slots this card is going to significantly under-perform.

The Adaptec SATA RAID 2610SA Controller provides for Plug and Play connection compatibility while incorporating a host of sophisticated on-chip management functionalities. The deployment of this hardware component and corresponding device driver allows for the effective implementation of RAID technology in small to medium based enterprises. Adaptec Sata Raid 2410sa Controller free download - Intel(R) 82801GR/GH SATA RAID Controller, Adaptec SCSI RAID Controller, Adaptec ASPI Drivers, and many more programs. The PMC Adaptec 71605E entry-level SAS/SATA 6Gb/s PCIe Gen3 RAID controller delivers affordable Hardware RAID that outperforms software-based HBAs and SATA controllers. Note: Only drivers that are not included or embedded within a supported operating system are listed below.

Drivers Adaptec Sata Raid 21610sa Controller Gamepad

In addition to this, the cards vintage is showing, it has the following limitations in a modern environment:

• 2TB maximum array size. Though you may have many arrays (or volumes), each one must be 2TB or less in size. Conceivably, one could 'span' several independent arrays together inside of Windows Server using traditional Disk Manager techniques or even, presumably, using Storage Spaces on Windows Server 2012/R2.
• Various sources on the internet report that the maximum drive size able to be seen by the controller is under 1TB. Even drives that are exactly 1TB in size have been reported as being detected as 750GB. Larger drives may not be seen, or may have 'random' reported sizes. Not really random of course, but usually a modulus of the oversize portion of the disk compared to the 1TB maximum.
• Given the hard limits then, and even assuming that you found a 1TB sized drive which was properly reported and could be used, the absolute maximum storage which this controller could conceivably see and manage is 6TB, made up of 3 2TB arrays in JBOD format.

Windows Server 2012 R2

There are no drivers for this card out-of-the-box on Microsoft Windows Server 2012R2. So whats going on here? This controller comes with drivers on Windows Server 2012 R1 but R2 doesn't have any drivers at all. The most reasonable sounding answer is to get those R1 drivers across to the R2 installation and they would probably work right? Right. However, getting them there is not a straight path.

By combining Synaptics Gesture Suite’s scrolling, zooming and rotation gestures with Scrybe’s symbols, one can unleash the power of the TouchPad.Important:The Synaptics device driver is customized to meet the specific requirements of your device manufacturer. To ensure that you get the appropriate device driver for your system, download your Synaptics device driver from your system manufacturer's support website.For more information on the advanced features enabled by the Synaptics Driver, view our Driver Product Brief.Note: Installing a generic driver may result in the loss of OEM-customized Synaptics pointing device functionality. Scrybe Gesture Workflows can greatly enhance your productivity by expanding your Synaptics TouchPad’s capabilities. Acer a191hq driver download for windows 10 64-bit. Setting a restore point before installing is a quick way to rollback to the previous driver.

Windows Server 2012 R1/R2 is available in 64 bit only and is very strict on driver signing. Whilst driver signing can be gotten around once the operating system is loaded, at the initial installation stage it might not be so easy, so we have to go around a few times to get everything working.

• Start the install of Windows Server 2012R2 as you normally would. If you are intending to boot from your Adaptec 2610SA RAID card then you will be presented with a blank drives available screen but are given the opportunity to load additional drivers. No matter what I did, I couldn't force the installer to accept the Windows 2012 R1 driver at this point, the installer always complained that the driver was unsigned, even if I booted with driver signing turned off.

Instead do this:

• Use the Windows Vista x64 driver for the 2420SA. Although of a different generation to our 2610SA it luckily utilises the same driver and the developers hadn't yet stripped out the older code. Major advantages: Its for Vista and its signed, dates from Oct 2007 rather than the earlier 2005 Win2K3 one - and best of all, it works when injected at the installation time of Server 2012R2.
• The Vista driver will get you through the installation and allow you to boot and work with the system afterwards, you might be happy to leave it that way. However, if you want to use the most recent RAID management software, Adaptec Storage Manager, then you will absolutely need to update the driver. Adaptec Storage Manager software versions from about v4.x and below will refuse to install on Windows Server 2012R2, citing compatibility problems, if you force the install then you will find that a core installation file is missing, doubtless available in XP/Win2K3, but no longer in Server 2012+. From about version 5.x of the Adaptec Storage Manager the installation will succeed, but the manager software will complain that it needs a driver update and won't let you see or manage your RAID volumes which is why you will need to update to the Windows Server 2012R1 driver.

• Once Windows Server 2012R2 is installed and working with the Vista x64 driver:

• Restart the server
• At startup, press F8 repeatedly until you get a text menu of various boot options. One of these options will be: Disable Driver Signature Enforcement. Select this option and press enter.
• Once the server has booted, log in, then open device manager, select the Adaptec 2610SA Controller, right click and choose Update Driver Software -> Browse my computer for driver software -> Let me pick from a list of device drivers on my computer -> Have disk -> browse to the location of the Windows Server 2012R1 Adaptec 2610SA driver -> ok -> next
• A warning will appear 'Windows can't verify the publisher of the driver software', choose to Install this driver software anyway. Click close. Reboot when asked.

You are now free to install the latest version of Adaptec Storage Manager that supports this card. Officially that would be v4.x, but it won't install as mentioned above, however, a bit of experimentation found that although officially unsupported, v7.31.x will install on Windows Server 2012R2 and support the management functions of the card.

4-input video capture driver download. Download Intel(R) Video Capture Card for Windows to mEDIA driver. Download Elgato Video Capture Software for Windows. Download Driver for Elgato Video Capture. Download for Mac. To check for updates and install the latest version, first launch Elgato Video Capture and then select 'Check for Updates' from the menu. The software update will install automatically. Newest Software (OS X). Video Capture Card Driver for Windows 10 (64-bit) - Thinksmart Hub 500 Lenovo Inc. Sweden Switzerland Taiwan Region Thailand Turkey Ukraine United Arab Emirates United Kingdom United States of America Uruguay US Downloads Venezuela Vietnam. Drivers & Software.

Associated Files

Drivers Adaptec Sata Raid 21610sa Controller Usb

Changelog:

2017-10-02

• Fixed links to files and general formatting

2016-06-05

Sata Raid Info

• For no well explained reason suddenly found that I could no longer use the previously recommended Win2K3 x64 signed driver during bare metal installs. Spent some time looking into this and found a better version of the driver, for Vista.
• Also found that the very last version of Adaptec Storage Manager could be used if the Windows Server 2012R1 unsigned driver is put in place of the much older but signed Vista version after install is done.

Updated both files to reflect the changes.
